Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: starwell
  • Model Number: PE80AA30
  • input: 90~264VAC
  • type: 0-10V dimming led driver
  • application: Led driver,LED Bulb driver ,LED lamp driver
  • output model: CC model for dimmable led driver
  • certificate: CE,EMC,EMI,ROHS
  • power factor: PF>0.95
  • compatible with: 0-10V , PWM 10V, 100K Res dimming function

Packaging & Delivery

Packaging Details white box pacakge
Delivery Time 1~15 days





PE80AA 80W constant current 0-10V dimmable led driver


Product Description

Wiring diagram:









Please check the 0-10V dimming led driver/ PWM 10V dimming led driver / 100K Res led driver model list as below:

Series

Dimming Method

MODEL NO.

input

output

Output voltage

Output current

PE896

0/1-10V

PE896B0735

PE896B:
AC220V-250V
PE896A:
AC95-140V

7W

9-24V

350mA

PE896B1230

12W

25-42V

300mA

PE896B1270

12W

6-15V

700mA

PE896B1670

16W

12-24V

700mA

PE896B1830

18W

42-70V

300mA

PE896B1435

18W

25-42V

350mA/400mA

PE30AA

0-10V
PWM 10V
100K
Res

PE30AA30

AC90V-250V

31.5W

18-30V

1050mA

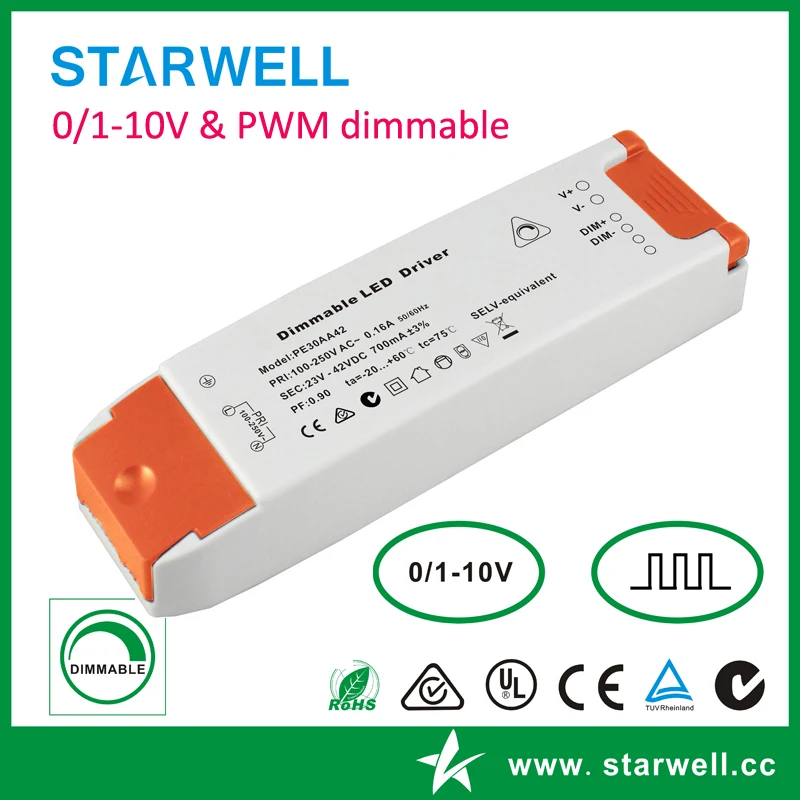

PE30AA36

32.4W

22-36V

900mA

PE30AA42

29.4W

25-42V

700mA

PE30AA48

28.8W

28-48V

600mA

PE30AA60

30W

35-60V

500mA

PE45AA

0-10V
PWM 10V
100K
Res

PE45AA30

AC90V-250V

42W

18-30V

1400mA

PE45AA36

43.2W

25-36V

1200mA

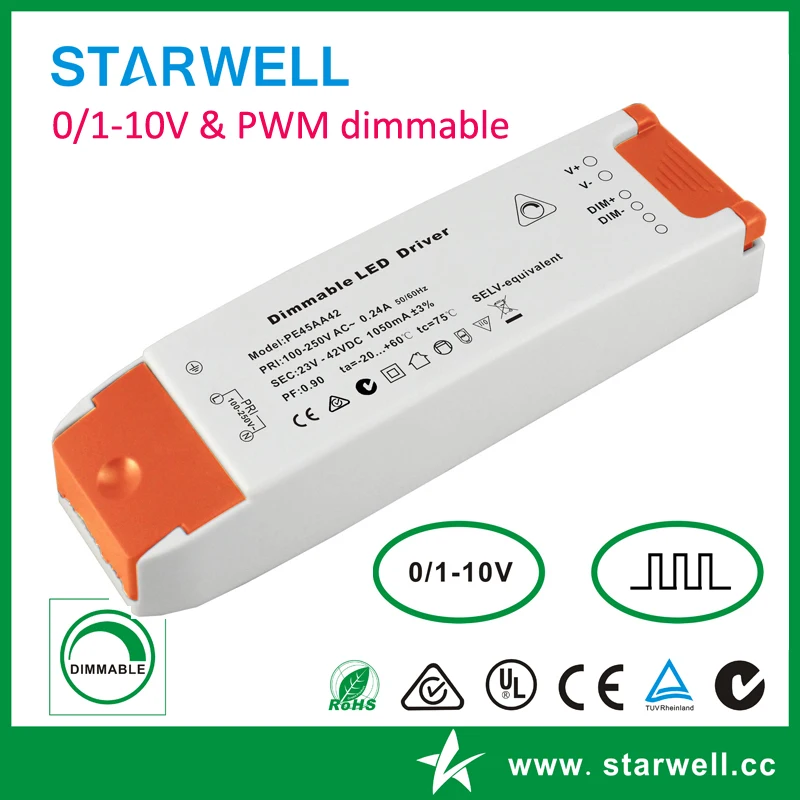

PE45AA42

44.1W

25-42V

1050mA

PE45AA48

43.2W

28-48V

900mA

PE45AA60

42W

35-60V

700mA

PE60AA

0-10V
PWM 10V
100K
Res

PE60AA24

AC90V-277V

60W

15-24V

2500mA

PE60AA30

60W

18-30V

2000mA

PE60AA36

61.2W

22-36V

1700mA

PE60AA42

60.9W

25-42V

1450mA

PE60AA48

62.4W

28-48V

1300mA

PE60AA54

62.1W

32-54V

1150mA

PE80AA

0-10V
PWM 10V
100K
Res

PE80AA24

AC90V-277V

81.6W

15-24V

3400mA

PE80AA30

81W

18-30V

2700mA

PE80AA36

82.8W

22-36V

2300mA

PE80AA42

81.9W

25-42V

1950mA

PE80AA48

81.6W

28-48V

1700mA

PE80AA54

81W

32-54V

1500mA





1.1. EMC Standards/EMC

GB9254

GB17625.1

GB13837

FCC- Part15

EN 61347

EN61547

CISPR 22

EN 61000-4-4

EN 61347-3-2

EN 61000-3-3

EN 61000-4-2

EN 61000-4-3

EN 61347-4-5

EN 61000-4-6

EN 61000-4-8

EN 61000-4-11

1.2.Safety Standards

Type

Country

Standard



Type

Country

Standard

CCC

China

GB4943

CE

Europe

EN61347

CCC

China

GB8898

CB

CB

IEC61347

UL/CUL

USA

UL61547

C-TICK

Australia

AS/NZ61547

KC

Korea

K61547

GS/TUV

German

EN61547




Packaging & Shipping

50 PCS/carton. White box for each unit.  carton box dimension:   322*276*251mm .



We do supply the shipping method by air or by sea.




Our Services

Fast shipping:  Usually we do have raw material instock for regualr model.

Well reputation: Our products are marketd to all over the world and no complain so far.

Good  quality: Our product do have UL,CE,FCC,GS,SAA etc certificate.

Best service: We provide 2+ years warranty for our product, repaire or replacement for free during warranty peroid.





...
